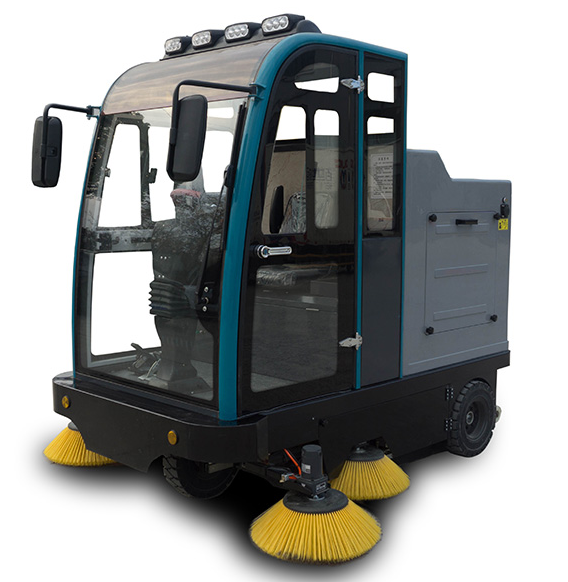

Apex YLBA5100 Ride-On Sweeper — Ride-On Sweeper for Factory workshops, Warehouse floors
The YLBA5100 is a ride-on sweeper by Apex (Changzhou Yongle). Key specs: 4500 m²/h efficiency, 1100 mm cleaning width, ≥5 hours runtime, 380 kg (with battery). Best for Factory workshops, Warehouse floors, Community roads.
The YLBA5100 is a ride-on sweeper built for facility managers who need reliable, professional-grade cleaning without the noise, labor strain or long training of legacy equipment. Backed by Changzhou Yongle — 20 years in industrial cleaning, 3,500+ enterprise clients — the YLBA5100 combines CE-certified build quality with OEM/ODM flexibility for global distributors.
Core Advantages
Cyclone separation technology
Unlike Direct suction: Filter cartridge lifespan extended 3×
1100mm wide sweeping path
Unlike 800mm: 37% efficiency improvement
Spray dust suppression system
Unlike None: Zero visible dust during sweeping
Auto filter shaking function
Unlike Manual cleaning: Filter stays unclogged for sustained high efficiency
Technical Specifications
| Parameter | YLBA5100 |
|---|---|
| Brand | 永乐 YONGLE |
| Model | YLBA5100 |
| Type | Ride-On Sweeper |
| Size | 1700×850×1150 mm |
| Weight | 380 kg (with battery) |
| Material | Engineering plastic shell + steel frame |
| Tank Capacity | Dustbin 150L / Water tank 25L |
| Power | 2500W |
| Cleaning Width | 1100 mm |
| Runtime | ≥5 hours |
| Noise | ≤67 dB |
| Efficiency | 4500 m²/h |
| Dust Collection | 150L dustbin |
| Filtration | Cyclone separation + cartridge filter |
| Drive Power | 800W |
| Filter Area | 3 m² |
Application Scenarios
Factory workshops — Concrete / Epoxy
Spray dust suppression
Warehouse floors — Emery
Large debris removal
Community roads — Asphalt / Pavers
Leaf sweeping
Parking lots — Epoxy / Concrete
Nighttime LED operation
Customer Pain Points & Apex Solutions
Pain — Sweeping dust endangers worker health
Traditional brooms and standard sweepers generate heavy dust clouds in factory workshops. Workers inhaling dust long-term develop respiratory illnesses, exposing businesses to injury claims and labor arbitration risks.
Apex answers this in the Core Advantages above.
Pain — Frequent filter clogging kills efficiency
Standard sweeper cartridges lack auto-cleaning. Once clogged with dust, suction drops dramatically — actual sweeping efficiency is barely half the rated specification.
Apex answers this in the Core Advantages above.
Pain — Can't handle large debris and fine dust simultaneously
Traditional sweepers either handle large debris (but blow fine dust everywhere) or fine dust (but large debris jams the roller brush). You can't have both in one pass.
Apex answers this in the Core Advantages above.
Pain — Clogged filters drive up consumable costs
Original filter cartridges cost $280 each; once clogged, suction halves. Frequent swaps run five figures a year and imports are often out of stock.
Apex answers this in the Core Advantages above.
Pain — Can't operate in rain or mud, forcing shutdowns
Wet-season mud-and-water mix won't intake; sweepers must stop until ground dries, doubling the cleaning cycle.
Apex answers this in the Core Advantages above.
Pain — Hard to hire qualified sweeper operators
Few know how to drive sweepers; even at $830/month roles stay vacant. Machines sit idle waiting for people — idle rate is alarming.
Apex answers this in the Core Advantages above.
Frequently Asked Questions
What is cyclone separation technology?
It uses centrifugal force from rotating airflow to settle large dust particles into the dustbin first, then filters fine dust through the cartridge. This prevents rapid filter clogging and extends cartridge life by 3×.
How much water does the spray dust suppression use?
The 25L water tank supports 6-8 hours of continuous spraying. Water consumption is minimal and doesn't leave the floor wet — the spray primarily adds weight to dust particles to prevent them from becoming airborne.
What floor types is it suitable for?
All hard surfaces including concrete, epoxy, emery, asphalt, and pavers. Not suitable for grass, sand, or other soft surfaces.
How does auto filter shaking work?
The system periodically vibrates the filter cartridge during operation, dislodging accumulated dust so it falls into the bin. This maintains peak suction without requiring the operator to stop and manually clean the filter.
What's the difference between cyclone separation and HEPA?
Cyclone separation is a pre-filtering stage that removes large particles mechanically. HEPA (used in the YLBA6100) targets sub-micron particles. The YLBA5100's cyclone + cartridge combo is excellent for industrial dust; HEPA is needed where PM2.5 control is critical.
Get the Full Spec Sheet
Request Spec Sheet View All Products
Brand: Apex (export) / 永乐 YONGLE (domestic) — Changzhou Yongle Environmental Engineering Co., Ltd.
